Tutorial Content

Topic: Optics > Physical Optics

Physical Optics (Wave Optics)

1. Conceptual Definition

Physical optics focuses on the **Wave Nature** of light, treating it as electromagnetic waves. Unlike geometrical optics, it explains light behavior at microscopic scales or when encountering obstacles.

* **Core Phenomena**: Interference, Diffraction, Polarization.

* **Basic Formula**: $v = \lambda f$ (Speed = Wavelength $\times$ Frequency). In vacuum, $c = 3.00 \times 10^8 m/s$.

2. Core Principles: Interference

The phenomenon where two or more waves overlap in space to form stable patterns of brightness and darkness.

#### A. Conditions for Coherence

To produce a stable interference pattern, light sources must have:

1. **Same Frequency** ($f_1 = f_2$)

2. **Same Direction of Vibration**

3. **Constant Phase Difference**

#### B. Optical Path Difference (OPD)

This is the key to calculating interference.

* **Optical Path (L)**: $L = n \cdot l$ (Refractive Index $\times$ Geometric Path).

* **Optical Path Difference ($\delta$)**: $\delta = L_2 - L_1$.

* **Conditions**:

* **Constructive Interference (Bright)**: $\delta = k\lambda \quad (k=0, 1, 2...)$

* **Destructive Interference (Dark)**: $\delta = (k + 0.5)\lambda \quad (k=0, 1, 2...)$

3. Typical Models

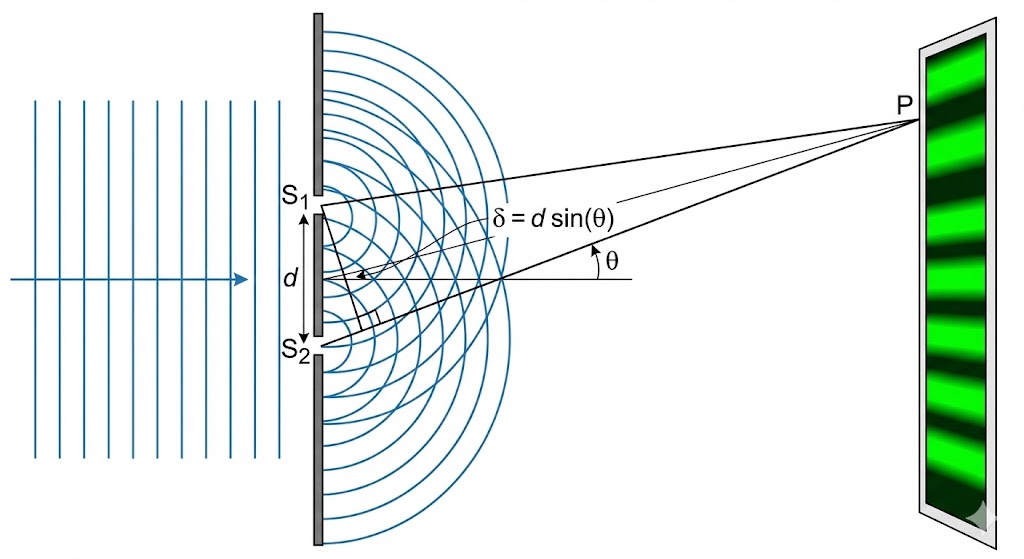

#### Model 1: Young's Double Slit

* **Principle**: Wavefront splitting. Light passes through slits $S_1, S_2$ creating two coherent sources.

* **OPD Approximation**: $\delta \approx d \sin\theta \approx d \cdot \frac{x}{D}$ ($d$: slit separation, $x$: distance from center, $D$: distance to screen).

* **Fringe Spacing Formula**:

$$ \Delta x = \frac{D\lambda}{d} $$

*Note: Larger wavelength $\lambda$ (Red) = Wider fringes. Smaller slit separation $d$ = Wider fringes.*

#### Model 2: Thin Film Interference

* **Principle**: Amplitude splitting. Light reflects off the top and bottom surfaces of a film.

* **OPD Formula**: $\delta = 2n_2 e \pm \text{Phase Change}$

* $e$: Film thickness.

* $n_2$: Film refractive index.

* **Half-Wave Loss (Phase Change)**:

* Rule: When light reflects from a **Rarer ($n_{low}$)** medium to a **Denser ($n_{high}$)** medium, there is a $\pi$ phase shift (adds $\lambda/2$ to OPD).

* No change for Dense to Rare reflection.

#### Model 3: Single Slit Diffraction

* **Phenomenon**: Light bending around a narrow slit, forming a pattern with a wide central bright fringe.

* **Condition for DARK Fringes (Contrast with Interference)**:

$$ a \sin\theta = k\lambda \quad (k=1, 2, 3...) $$

*Note: The central maximum is approximately twice as wide as other fringes.*

4. Typical Examples

**Example 1: Double Slit Calculation**

Slit separation $d=0.2mm$, distance $D=1m$, green light $\lambda=500nm$. Find the spacing between adjacent bright fringes.

* **Solution**:

$$ \Delta x = \frac{D\lambda}{d} = \frac{1.0 \times (500 \times 10^{-9})}{0.2 \times 10^{-3}} = 2.5 \times 10^{-3} m = 2.5mm $$

**Example 2: Anti-Reflective Coating**

Glass ($n_g=1.5$) is coated with Magnesium Fluoride ($n_f=1.38$). Find the minimum thickness for minimum reflection of green light ($\lambda=550nm$).

* **Analysis**:

1. Air ($n=1$) $\to$ Film ($n=1.38$): Phase change (Yes).

2. Film ($n=1.38$) $\to$ Glass ($n=1.5$): Phase change (Yes).

3. Both rays shift, effects cancel. Total OPD $\delta = 2n_f e$.

4. Min Reflection $\rightarrow$ Destructive $\rightarrow \delta = (k+0.5)\lambda$.

5. Min thickness ($k=0$): $2n_f e = 0.5\lambda \Rightarrow 4n_f e = \lambda$.

* **Calculation**:

$$ e = \frac{\lambda}{4n_f} = \frac{550}{4 \times 1.38} \approx 99.6 nm $$
